Open timing belt / Endless timing belt / Silicon timing belt / High teperature timng belt..

1 web (3)
1 web (1)
1 web (2)

1 Silicon timming belt,synchronous belts

Type: T10

Features:
High temperature working

Customized for sanitary napkins and diapers industry

Seamless, one-piece molded timming belt

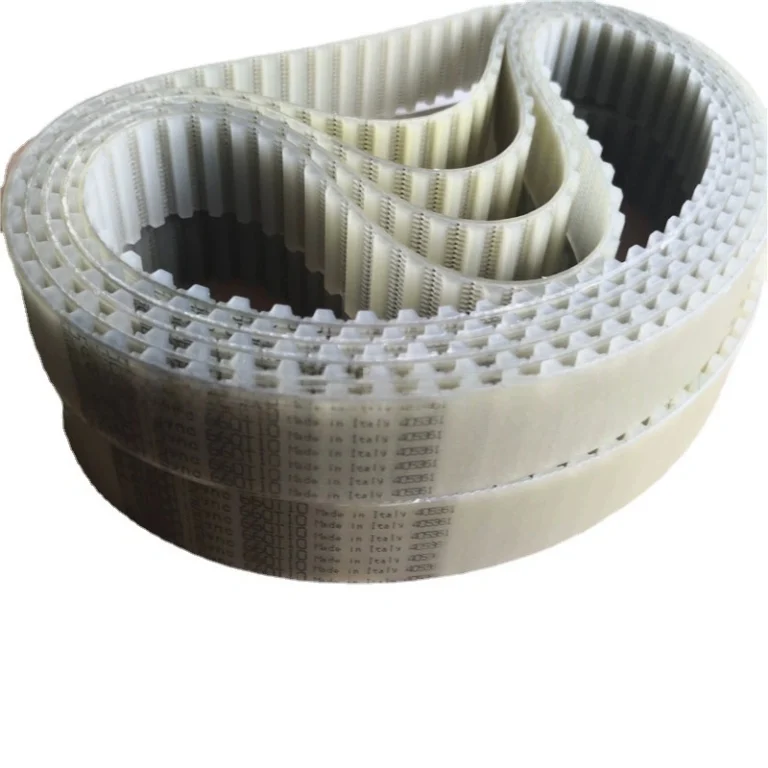

2 Seamless, one-piece molded timming belt

Type: T10
Material: Polyurethane
Applied in most mechanical transmission application
Features: seamless, one-piece molded timming belt fosters its strength

web

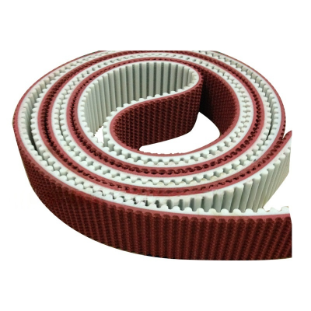

3 High End Rubber Timming Belt used in Glass Industry

Type: 8M
Material: PU
Features: High friction, no shedding, no residue, no trance, excellent grip

4 web (2)
4 web (1)

4 PU timming belt

Item: UU8E
Thickness: 1.5mm
Material: high temperature resistance Polyurethane
Min Pulley Dia: 15mm
Applied in Handling machine belt, sorting convyor belt in paper industry, photovoltaic conveyor belt

6 web (1)
6 web (2)

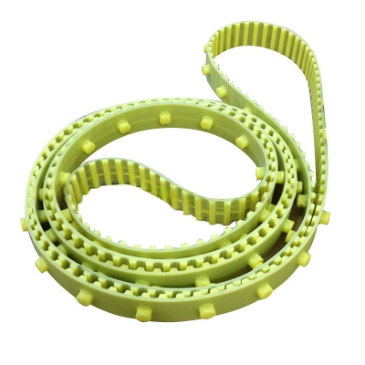

6 Cart flat timing belt , synchronous belt 26T10-3040

Carding machine timing belt
Material: Polyurthane
84 cylinders on back, width 26mm
Type: PU seamless timing belt

web (1)
web (2)

8 Synchronous belt for computerized embroidery machine

3M/5M/T5/XL

9 web (1)
9 web (2)
9 web (3)
9 web (4)

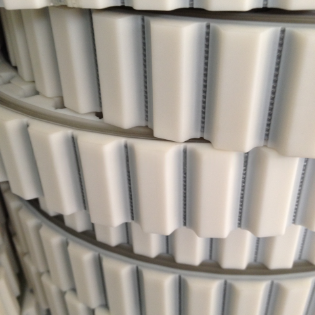

9 Automotive Assembly Line Synchronous belt


PU timing belt 14M AT20
Width 25 50 75 100（mm）

37 web (2)
37 web (3)
37 web (1)

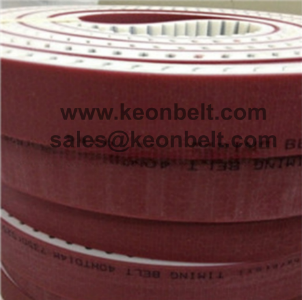

37 Adding cover timing belt HTD14M+2mm for glass edge grinding machine

Type：HTD14M+2mm cover
Pitch：14mm
Thickness：12mm
Material：PU+steel cord+red layer
Min pulley dia：80mm

10 web (1)
10 web (2)

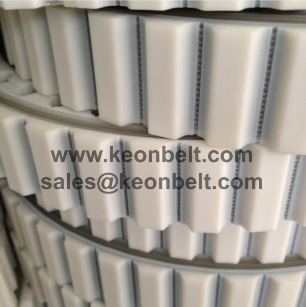

10 Straight Steel Cord Synchronous Belt, High load lifting synchronous belt

T10 AT10 T20 AT20 8M 14M
Width: 25、50、75、100

11 web (3)
11 web (1)
11 web (2)

11 Endless Double-Sided Synchronous Belt Timming Belt

Type：AT10DL
Pitch：10mm
Material：PU
Min pulley dia：50mm
Application：Double-Sided mechanical synchronous drive

12 web (3)
12 web (1)
12 web (2)

12 Counterbored guide rib synchronous belt

Type：50AN10K6
Pitch：10mm
Material：PU
Min pulley dia：80mm
Application：Precision mechanical conveyance, Intelligent machine positioning and transmission , easy-to-attach accessories on surface

13 web (2)
13 web (1)

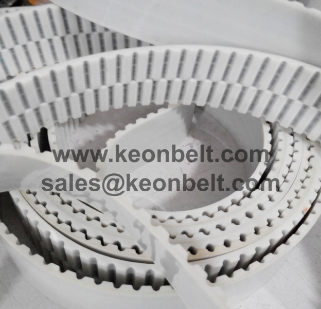

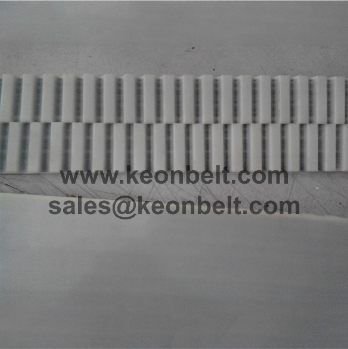

13 Anti-offtrack Synchronous Belt

Type：AT10
Pitch：10mm
Material：PU
Min Pulley Dia：55mm

Application：Unique staggered-tooth design ensures the belt does not drift sideways.

14 web (1)
14 web (2)
14 web (3)

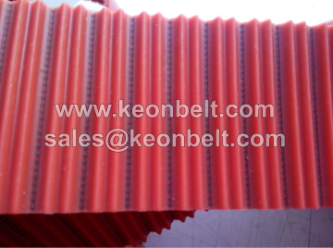

14 High tensile industrial synchronous belt,red timming belt

Type：TP10
Pitch：10mm
Mterial：PU
Color :red
Min Pulley Dia：65mm
Application：High tensile，high presicion mechanical transmission

15 web (1)
15 web (2)
15 web (3)

15 Anti-offtrack Synchronous Belt, HTD belt, Stamping line conveyor belt BAT10 BATK10

Type：BATK10
Pitch：10mm
Material：PU
Min pulley dia：80mm

Application：high-speed precision handing, applications include:electronics,photovoltaic, and chemical industries.

17 web (1)
17 web (2)
17 web (3)

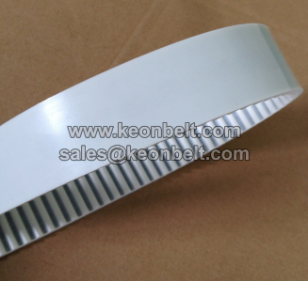

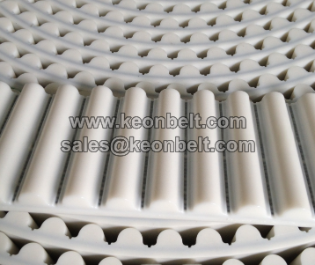

17 PU timming belt, synchronous belt, open-end timing belt 3M 5M 8M 14M

Type：MTD-14M
Pitch：14mm
Material：TPU
Min Pulley Dia：85mm
Application：Cross-Lapper guide belt, automatic assembly line belt

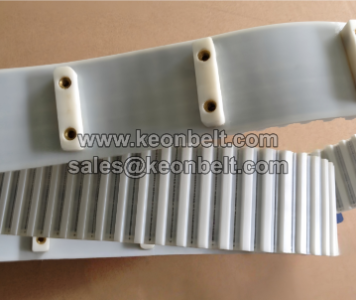

19 web (1)
19 web (2)

19 Double sided staggered timing belt synchronous belt AT10DL

Type：AT10DL
Thickness：7.0mm
Material：PU
Min Pulley Dia：55mm
Application：Double side drive machinery

20 web (1)
20 web (2)

20 European Quality synchronous belt AT5

Tpye：AT5
Thickness：2.7mm
Material：PU+steel corrd
Min pulley dia：15mm
Applications：Synchronous mechanical transmission, food mechinery

21 web (1)
21 web (2)
21 web (3)

21 Labeling machine timing belt, printing feeding machine timing belt

Labeling machine timing belt, printing feeding machine timing belt

Low pretension

Abrasion resistance

High leveled precision

22 web (1)
22 web (2)
22 web (3)

22 High-anti-static high conductivity synchronous belt, timing belt

Type：T5
Pitch：5mm
Thickness：2.5mm
Material：PU+steel
Min pulley diia：40mm
Applicatioon：high conductivity，idealy suited for flammable, explosive substances conveying, and for transmissionin electrostatic discharge equipment.

23 web (1)
23 web (2)

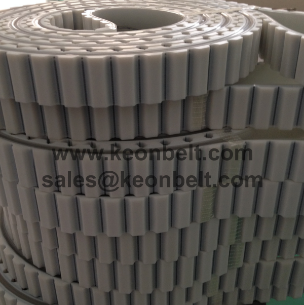

23 Coated glass, optical glass, edge grinding machine transmission belt AT10

Type：AT10
Pitch：10mm
Thickness：8mm
Material：PU+steel
Min pulley dia：80mm
Application：Coated glass conveyor belt, glass edge grinding machine belt

25 web

25 Anti stastic synchronous belt, pallet conveyor belt, timming belt T5

Type：S
Pitch：8mm
Thickness：5.6mm
Material：rubber
Min pulley dia：70mm
Application：High tensile mechanical drive, low noise,abrasion resistant

26 web (3)
26 web (1)
26 web (2)

26 Glass edging machine synchronous belt, marble edge grinding machine synchronous belt

Type：14M
Pitch：14mm
Thickness：12mm
Material：PU+steel
Color:white/red
Min pulley dia：100mm
Application：glass edge grinding machin, marble edge grinding machine

27 web (1)
27 web (2)
27 web (3)

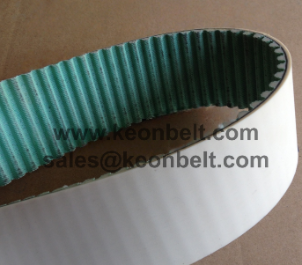

27 High teperature working silicon synchronous belt, anti-sticky synchronous belt

Type：SG-8M
Thickness：6.5mm
Material：silicon
Color：green/white
Min pulley dia：50mm
Features: stable demension, low pretension, low noise, nonstick surface, single shot silicon molding technique, effectively eliminating the splitting problem in joint areas of common belts

28 web (3)
28 web (1)
28 web (2)

28 High temperature working timing belt 232MXL

Type：SG-MXL
Thickness：1.6mm
Material：silicon
color：green/white
Min pulley dia：10mm
Features: stable demension, low pretension, low noise, nonstick surface, single shot silicon molding technique, effectively eliminating the splitting problem in joint areas of common belts

29 web

29 RPP toothed belt 1800SV8

Type：SV8
Thickness：5.4mm
Material：rubber
color：black
Min pulley dia：60mm
Features：stable demension, low pretension, low noise, less maintenance,good resilience

30 web (1)
30 web (2)

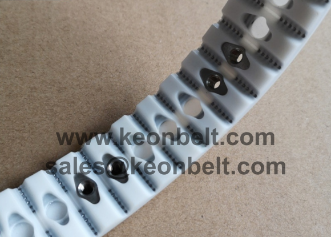

30 Endless drive timming belt AT5-720

Type：AT5
Thickness：2.7mm

Material：PU+steel cord
color：grey
Min pulley dia：30mm
Features：
・stable demension
・low noise, abrasion resistance
・ less maintenance
・good resilience
・linear speed max 80m/s

31 web (3)
31 web (1)
31 web (2)

31 Endless thoothed belt AT5

Type：AT5
Thickness：2.7mm
Material：PU+steel cord
color: grey
Min pulley dia：30mm
Features:
・ stable demension,
・low noise
・abrasion resistance
・less maintenance,
・good resilience
・linear speed max 80m/s

32 web (2)
32 web (3)
32 web (1)

32 Attached blocks synchronous belt for high precision instruments S5M

Type：S5M
Thickness：3.8mm
Material：PU+steel cord
Color: white
Min pulley dia：40mm
Features:
・Blocks positioning for high precision equipment transmission
・comply with anti-stastic property,
・98% power transimission efficiency
・Perfectly match backside guide rollers
・Prevent tooth skipping
・Enhanced thooth shear strength
・Silent operation, Maintenance free

33 web (2)
33 web (3)

33 Synchronous belt timing belt for filming machine, vocuum film stretching machine, paper paging machine

Type：T10
Yhickness：8m
Min pulley dia：50mm
Features:: Added thickness makes it another higher anti-abrasion level

web34 (1)
web34 (2)
web34 (3)

34 Tailor-made fixture-mounted,embedded nut timming belt, toothed belt AT10

Type：AT10
Pitch：10mm
Thickness：4.5mm
Material：PU+steel
Min pulley dia：60mm

Features：
・Stable demension
・Low pretension
・Low noise
・Abrasion resistance
・Less maintenance
・Good resilience
・Linear speed max 80m/s

Demantic Conveyor belt

35 Palletizer Belt

High conductivity
Application: Intelligent  conveyor system, Rail conveying,  Autocar electronics, Lithium Manufacturing

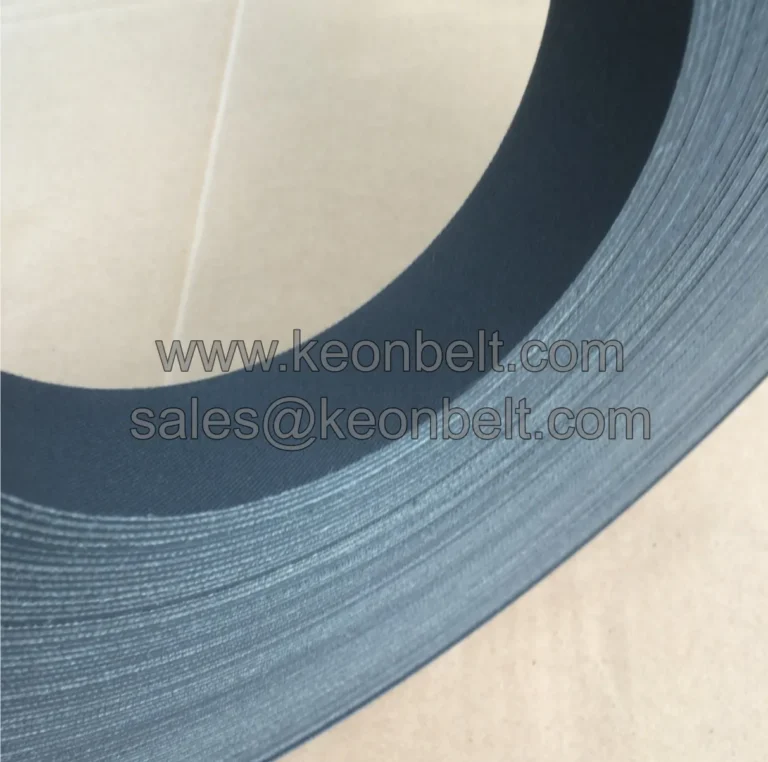

Palletizer Conveyor Belt

Palletizer Belt Intelligent Logistics Conveyor Belt​

High conductivity
Application: Intelligent  conveyor system, Rail conveying,  Autocar electronics, Lithium Manufacturing

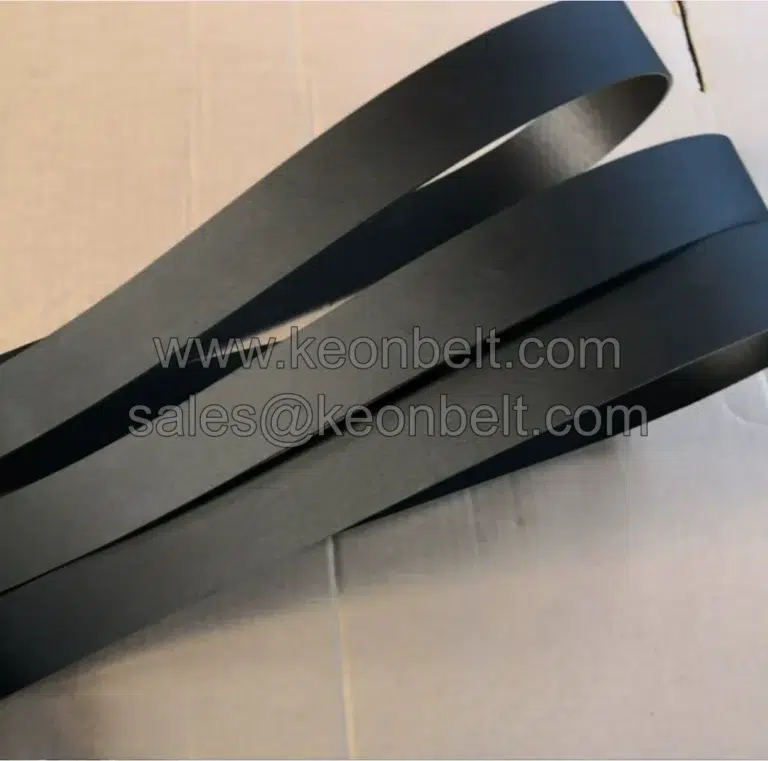

Logistics Conveyor Belt

Assembly Logistics transimission Belt Intelligent Logistics Conveyor Belt

High conductivity
Application: Intelligent  conveyor system, Rail conveying,  Autocar electronics, Lithium Manufacturing

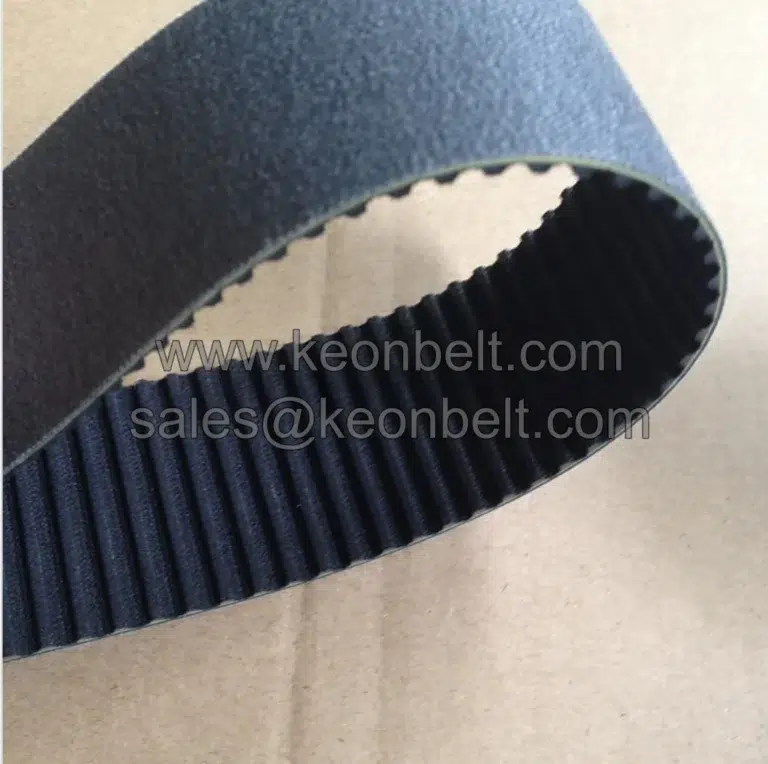

Interroll system belt

Assembly Logistics Conveyor Belt

High conductivity
Application: Intelligent  conveyor system, Rail conveying,  Autocar electronics, Lithium Manufacturing

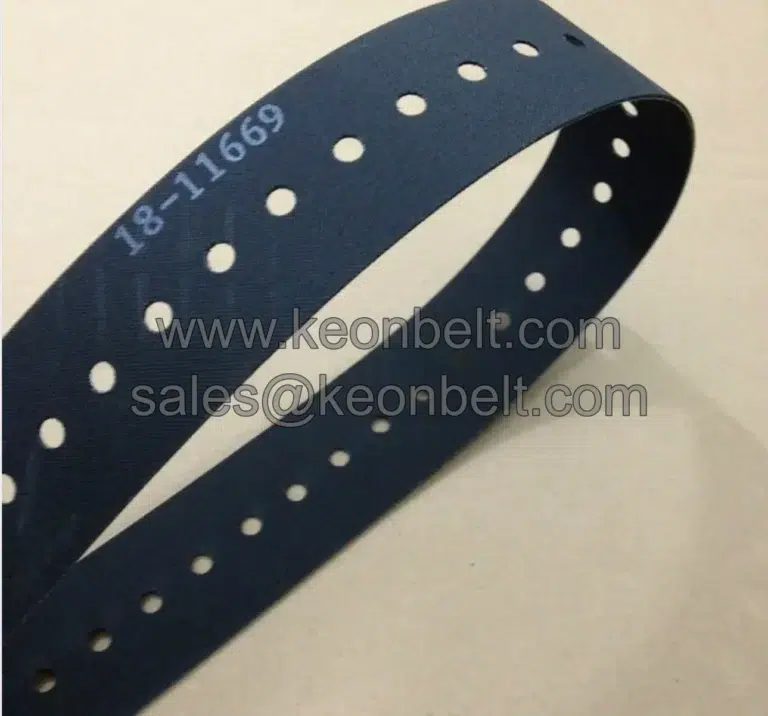

Knapp System Belt

Intelligent Logistics System Belt

High conductivity
Application: Intelligent  conveyor system, Rail conveying,  Autocar electronics, Lithium Manufacturing
